Hand held Alloy Analyzer Alloy Material Identification (PMI) Fast SDD Detector HXRF-145ATE

HUATEC Hand-held Alloy Analyzer Alloy Material Identification (PMI) fast SDD Detector HXRF-145AT

Performance Features

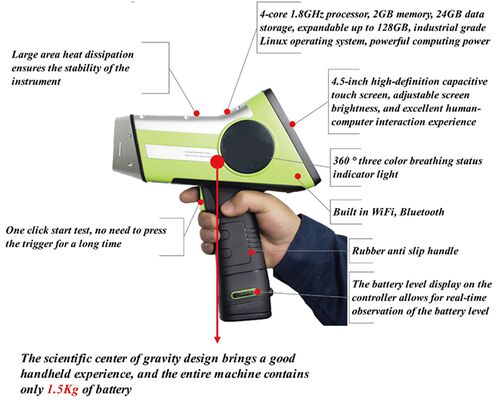

1. Small, light and easy to carry.

2. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.

3. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.

4.4.5inch Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field. At the same time, people don't need to take off gloves when they are opreating machine in some particular environment.

5. HXRF-145AT utilizes anti-slip, abrasion resistance and streamlined design, which is light and easy to carry. It also integrates the new high speed digital multi-channel technology, the new library grade base identification system and the super-FP algorithm. These features allow it to measure elements faster, with higher accuracy and greater repeatability.

6. Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.

7. HXRF-145AT is supportive to battery hot plug, hence battery can be replaced without powering off the machine.

8. HXRF-145AT can be configured and maintained in a remote way via Internet.

9. Remote control:equipped with WinGUI software and Android APP, it can be connected to a computer or phone for data synchronization and sharing with instruments

10. Radiation safty:equipped with WinGUI software and Android APP, it can be connected to a computer or phone for data synchronization and sharing with instruments

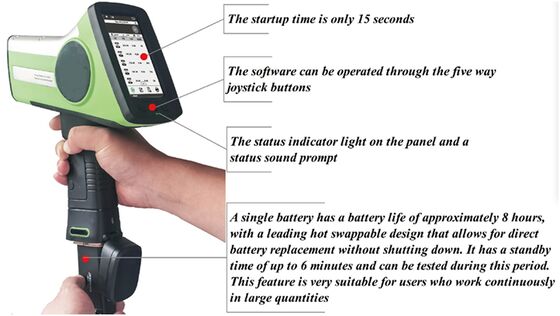

11. Battery:6600mAh lithium battery with charged capacity display; The working time of a single battery is about 8 hours, hot swapping function, allowing for direct battery replacement without shutting down the machine; During operation, the battery level can be displayed synchronously on the handle and screen

Application Features

1.Excellent Performance

HXRF-145AT shows element symbols in English. With high precision, high testing speed and comparable results to even that of laboratory equipment, HXRF-145AT displays alloy grade and elements percentage content (up to three decimals) and ppm content in an apparent way.

2.One-touch operation

HXRF-145AT test lasts only a few seconds and identification of alloy grades takes only 1 or 2 seconds. This facilitates operation by non-technical users.

3.Nondestructive testing (NDT)

HXRF-145AT test does not damage or have any adverse effect on the use of samples. No damage is foreseen in the entire test process.

4.Analysis software

Analysis software is a professional analysis software which enables the users to easily configure passwords, customize analysis reports attached with company LOGO HUATEC and implement remote control of machine; users can edit alloy grade library, add their own grade number or define their own company's alloy brands; the software also allows automatic calibration of instrument and diagnosis of problems in a remote way; the software can be updated via Internet.

5.Scrap metal recycling and sorting

Scrap metal recycling, reuse, and on-site analysis and sorting. HXRF-145AT offers a rapid and reliable identification of the scrap metals when scrap metals are transacted between buyers and sellers. HXRF-145AT delivers quantitative element analysis of iron alloy, copper alloy, aluminum alloy, copper-iron alloy,lead-tin alloy, mixed alloys, etc, and rapid identification and sorting of these alloys on the site.

6.Application fields, safety and standards

HXRF-145AT is suitable for alloy material identification (PMI) for incoming inspection;material inventory management;re-inspection of construction materials in petrochemical construction, metal smelting, pressure vessel, power plant, petrochemical industry, fine chemical, pharmaceutical, aerospace and other industries to avoid serious safety accidents resulting from mixed or unqualified materials. HXRF-145AT is in compliance with ANTM standard, China National Standard (GB), UNS, electric industry standard (DL), API, JIS, GMP, TSG, Mechanical Industry standard (JB), etc.

7.Quality Control, Quality Assurance (QC/QA) and Error-proofing(PKKA - YOKE)

In metal processing and manufacturing industry, quality control and quality assurance (QC/QA) and error proofing (PKKA - YOKE) of materials (raw materials), semi-finished products and finished products is indispensable. Use of mixed or unqualified materials will bring losses to the company. This is true to companies ranging from small metal processing plants to large aircraft manufacturers.

8.Data Processing and Enterprise Resource Planning (ERP)

Data can be transferred via USB, WIFI and Bluetooth and stored in excel, pdf or other formats. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin of goods and batch number); i-cloud data storage service is optional. Data can transport to Enterprise Resource Planning (ERP) system.

Application fields

• Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site
• Metal identification /scrap metal sorting
• QA/QC management in metal production, processing, casting, etc
• Medicine and biological medicine
• Identification of positive materials, oil refining and petrochemical industry
• Thermal power plant, hydroelectric power station, nuclear power plant
• Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment and materials used in the process.

Elements to be Analyzed and Test Modes

Alloy family

• Iron-based alloy series (stainless steel, chromium/molybdenum alloy steel, low alloy steel, tool steel, seamless steel)
• Nickel-based alloy series (nickel alloy, nickel/cobalt alloy)
• Cobalt-based alloy series
• Titanium-based alloy series
• Copper-based alloy Series (bronze, brass, copper and nickel alloy, etc.)
• High temperature alloys (molybdenum tungsten alloy)
• Aluminum-based alloy

Main technical specifications and parameters

Real-test Values of 316 samples

After service

1． Quality warranty:

HUATEC commits that HXRF-145AT handheld spectrometer is fabricated with fine grade materials and top notch workmanship. It is brand new, never used, and in full compliance with the quality provision of this Contract. HXRF-145AT warranty is 12 months starting from the date of final acceptance of the goods/commissioning of machine.

2． Technical training:

Operating Manual of HXRF-145AT Handheld Spectrometers

Maintenance Manual of HXRF-145AT Handheld Spectrometers

3． After-sale service

Over the years, HUATEC has sold XRF instruments to many global users. In order to provide better technical support and service, it shall be committed to.

1． services including

1. HUATEC shall provide after-sales service to all products it has sold worldwide.
2. HUATEC shall provide a one-year warranty for the spectrometer it has sold worldwide.
3. HUATEC shall provide one-year warranty for X-ray Tube (X-ray tube)and Detector (Detector).
4. HUATEC shall provide one-year renewal warranty for the replaced components in case there is any replacement of them during repair of machine.

2． The following physical damage is not covered by warranty.

1. instrument is impacted by great force that the internal impact sensor changes from white to red;
2. Detector is broken
3. PDA is broken;
4. Instrument body is broken;
5. Loss of accessories
6. Loss of components
7. Water coming into instrument

3． In case the instrument is not able to operate, the customer can call after-sales service for help; we offer 3 types of repairs:

1. Internet repair: if the customers are in foreign countries or remote areas, we can offer them first the INTERNET repair service.

Website: www.huatecgroup.com Email:export@huatecgroup.com

1. Phone repair: customers called over the phone to explain explicitly the problem and our technical staff will instruct them to solve the problem.
2. On-site repair: in case the phone repair fails, our technical personnel will go to the site to repair the instrument within 72 hours after the problem is reported; for aboard customer, on-site repair need to be talked in details.

4． Out-of-warranty service: upon expiry of the warranty period, all customers are still entitled to out-of-warranty service during the working life of the instrument.

5． Privilege in out-of-warranty service: customers shall have the privilege to get preferential prices on the components when they maintain their instrument during the out-of-warranty period as long as they maintained it beforehand.
